Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.
Traffic Management
- Auto Negotiation of speed and duplex modes
- IEEE 802.3x Flow Control
- Dynamic MAC address management
- IEEE 802.1Q-based VLAN
- Auto Voice VLAN
- Auto Video VLAN (selected models)
- VLAN routing (selected models)
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 801.2p-based QoS
- TCP/UDP-based QoS
- DiffServ
- IPv4 and IPv6-based QoS (selected models)
- DSCP Support
- Rate Limiting (ingress, or egress)
- Link Aggregation and LACP

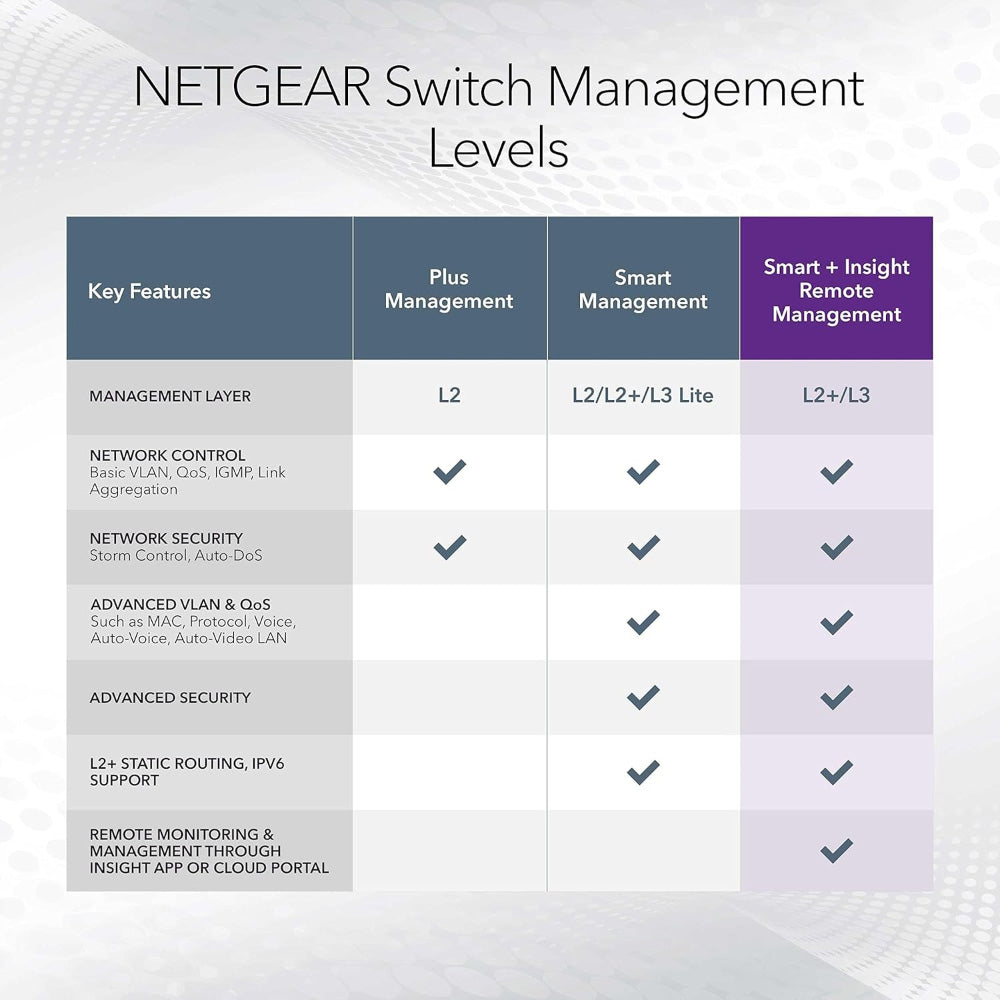

Switch Management
- Web browser-based management GUI
- Smart Lite CLI Software for multi-switch management
- IP Access List
- IPv6 Management
- Configurable Management VLAN
- SNMP v1/v2c and v3
- Standard MIBs (RFC1213, RFC1643, and RFC1493)
- RMON group 1, 2, 3, 9
- Firmware download (to switch) and upload (to server) through TFTP/HTTP
- Configuration and Image Upload (to PC) through HTTP
- Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
- Memory & FLASH log
- Syslog (server)
- System password protection
Security
- MAC lockdown
- MAC lockdown by number of MACs
- IEEE 802.1x port authentication - MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP
- IEEE 802.1x port authentication (EAP): GS510TLP, GS510TPP, GS418TPP, GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS724TPv2, GS728TP, GS728TPv2, GS728TPP, GS728TPPv2, GS752TP, GS752TPv2, GS752TPP
- Dynamic VLAN Assignment
- Guest VLAN
- TACACS+
- 3 HTTPS /SSL versions (except FS728TLP)
- TLS session (except FS728TLP)
- Trusted MAC
- IPv4, L4-based Access Control List (ACL)
- IPv6-based ACL (selected models)
Multicast Efficiency
- IGMP snooping, v1, v2 and v3
- IGMP Snooping querier
- Blocking of unknown multicast traffic
Spanning Tree, Routing and Stacking
- IEEE 802.1D, IEEE 802.1w RSTP and MSTP
- Option to enable/disable BPDU flooding when STP is disabled
- Static routing with 32 static routes (Selected models)
- Hosted ARP table size of 512 (Selected models)
Reliability, Performance and Troubleshooting
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast Storm control
- Cable diagnostics
- Loop Detection
- DoS Prevention
- IEEE 802.1ab LLDP
- LLDP-MED
- Dual Image
- SNTP
- Option to enable/disable the flooding of EAPOL when 802.1x is disabled
- Protected ports
- DNS client (except FS728TLP)
- DHCP clients
- DHCP snooping (except FS728TLP)
- Ping and traceroute client (except FS728TLP)
- Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
NETGEAR Insight Remote Mangement
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 4-year subscription is included.
Technical Specifications
