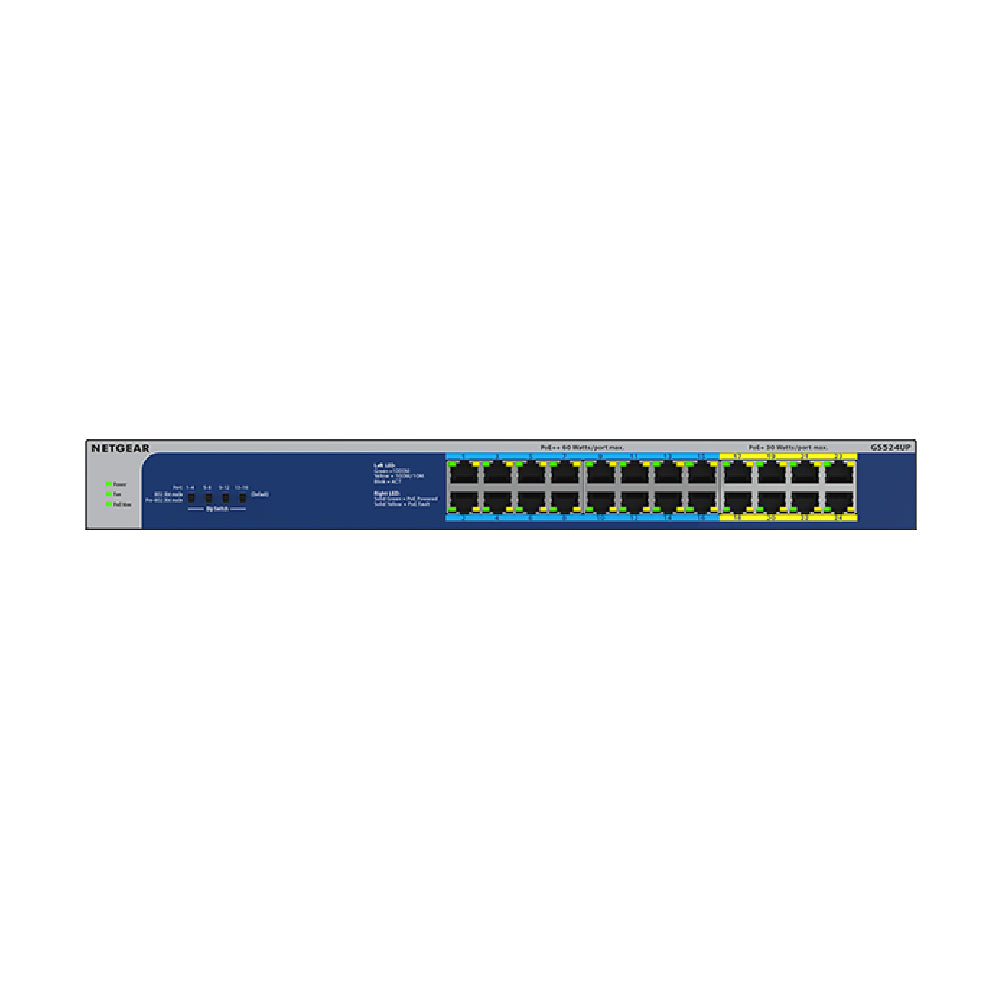

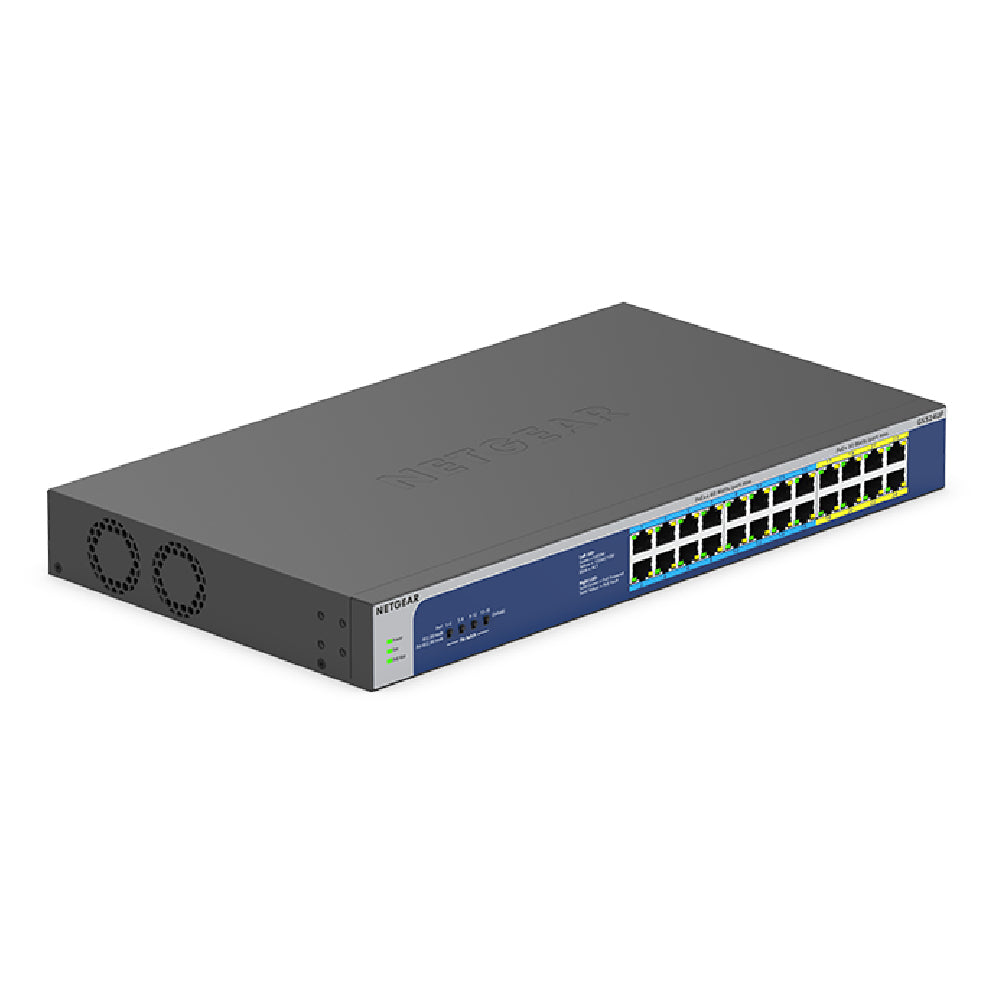

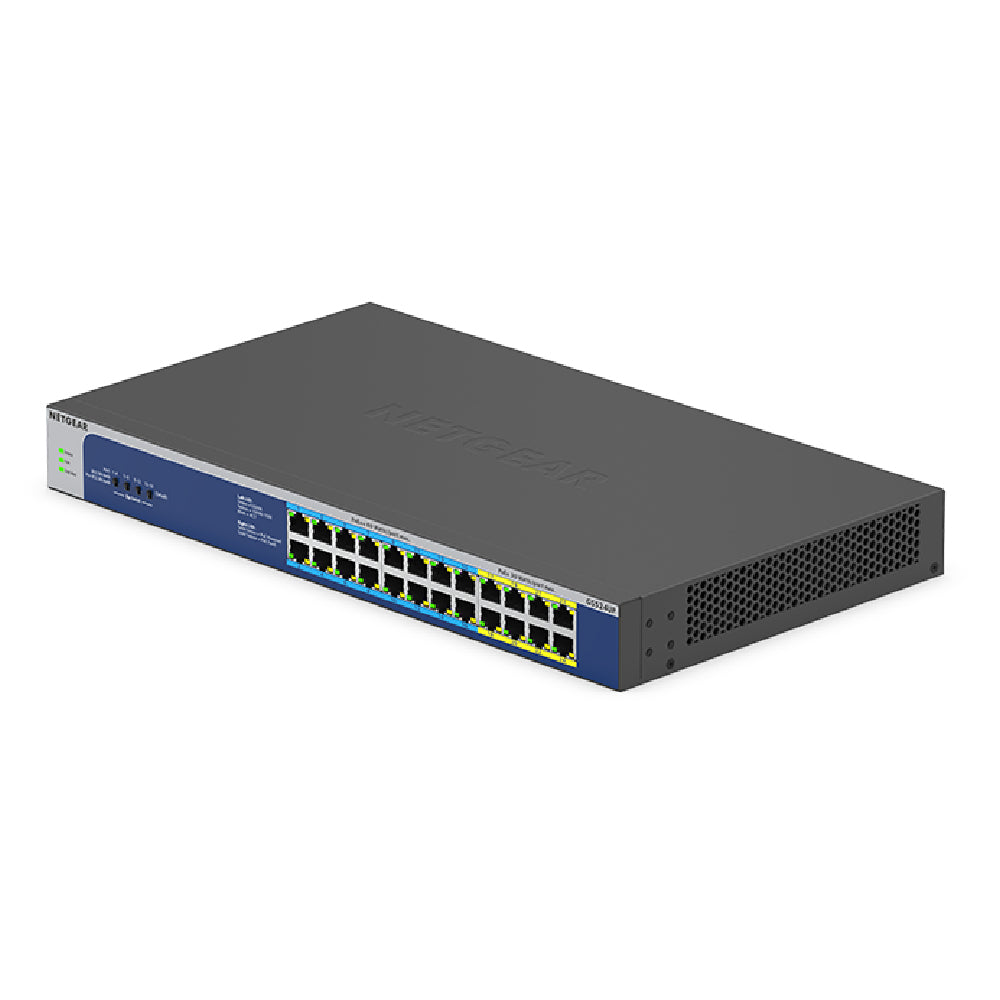

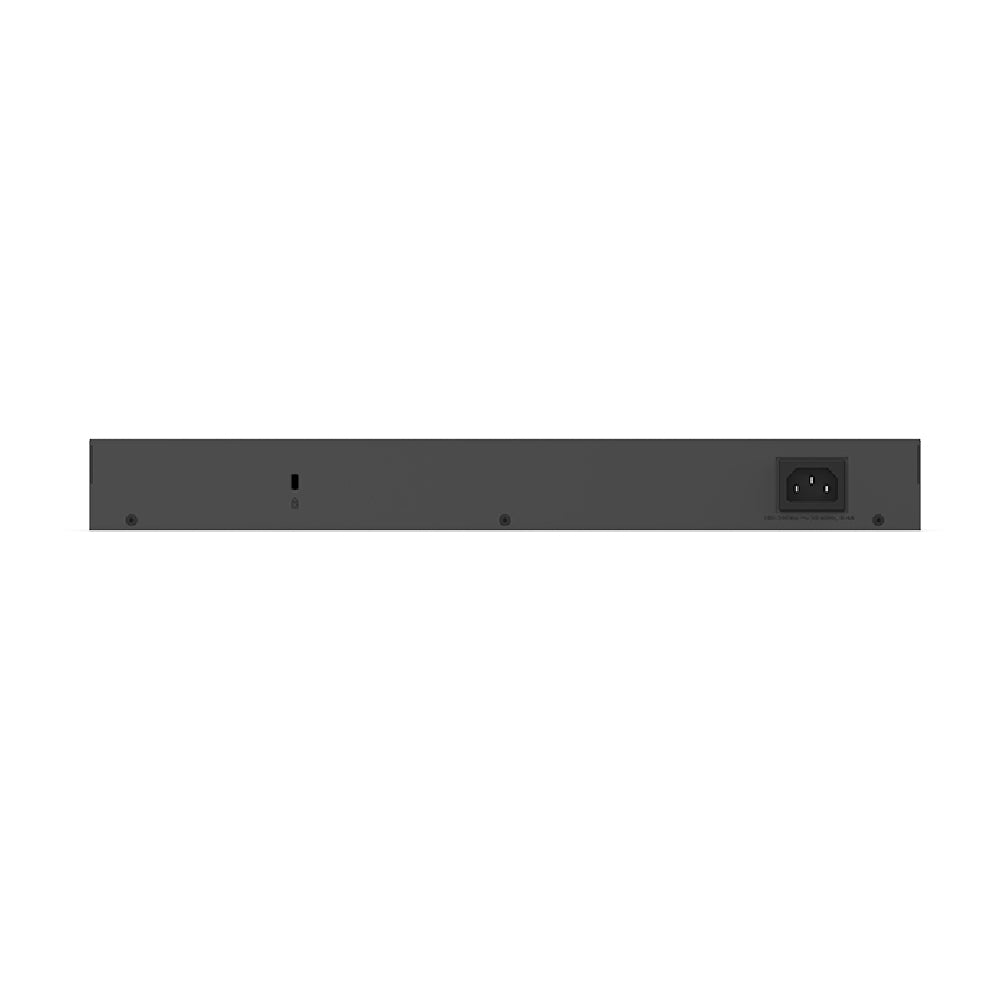

NETGEAR brings even larger PoE budgets on Unmanaged switches with Ultra60 PoE++ technology with 24-port (GS524UP) Unmanaged Switches, ideal for powerful PoE+/PoE++ installations with impressive PoE budgets up to 480W, a compact size, plug-and-play installation, and reliable performance at affordable prices.
These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port. Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices.
The GS524UP has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.
Ethernet Port Configuration
24 Gigabit ports
Simple set up with no software to install or configuration needed and zero maintenance
Non-blocking switching architecture for maximum throughput at wire speed
16 Ultra60 PoE++, and 8 PoE+ ports with 480W total power budget to power wireless AP, 4K IP Cameras, IP Phones and much more
Power auto-balance and allocation
NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs
The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
Designed to optimize power usage lowering its cost to operate
Ensure interoperability with any standards-based PDs
Versatile Mounting Options
Supports desktop or rackmount placement, and includes all mounting hardware in the box
330 x 207 x 43 mm (12.99 in. x 8.15 in. x 1.7 in.)
Management Type (if applicable)
Ultra60 PoE++ ports
3.10kg (6.83 lb)
Limited Lifetime Hardware Warranty
