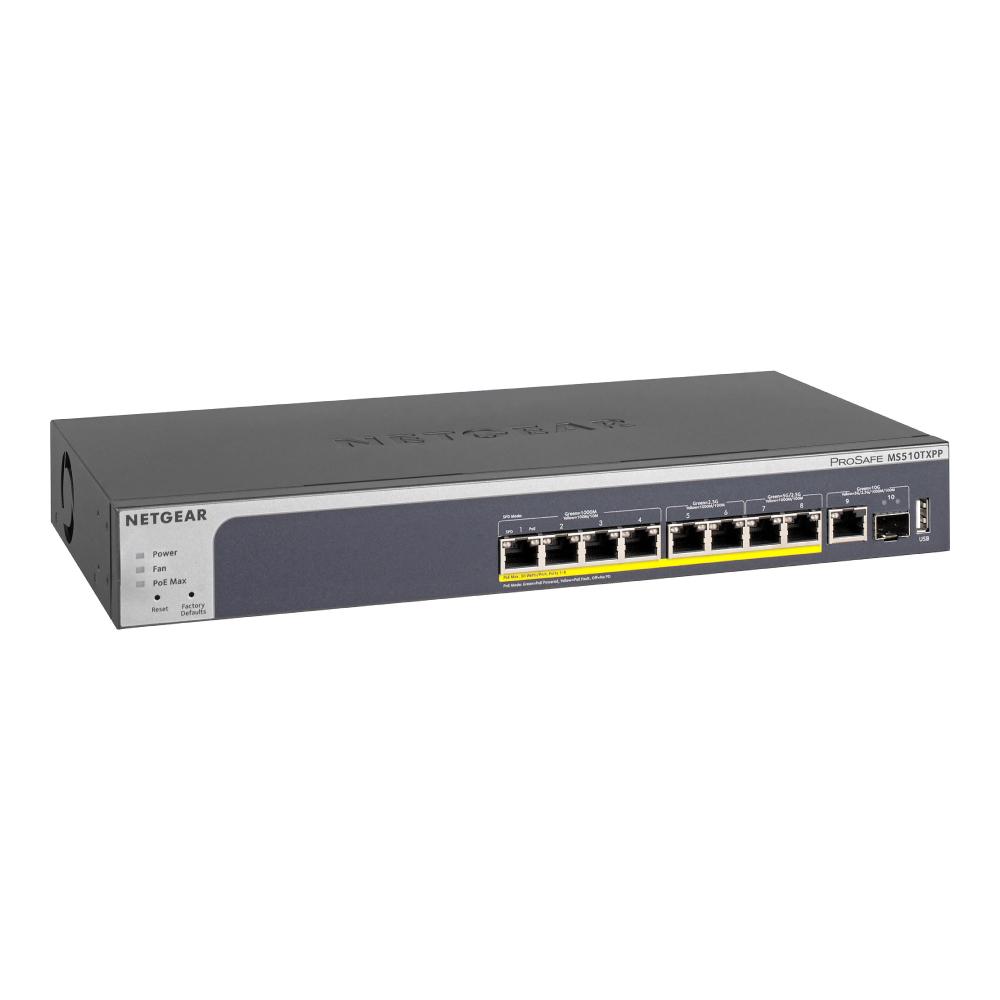

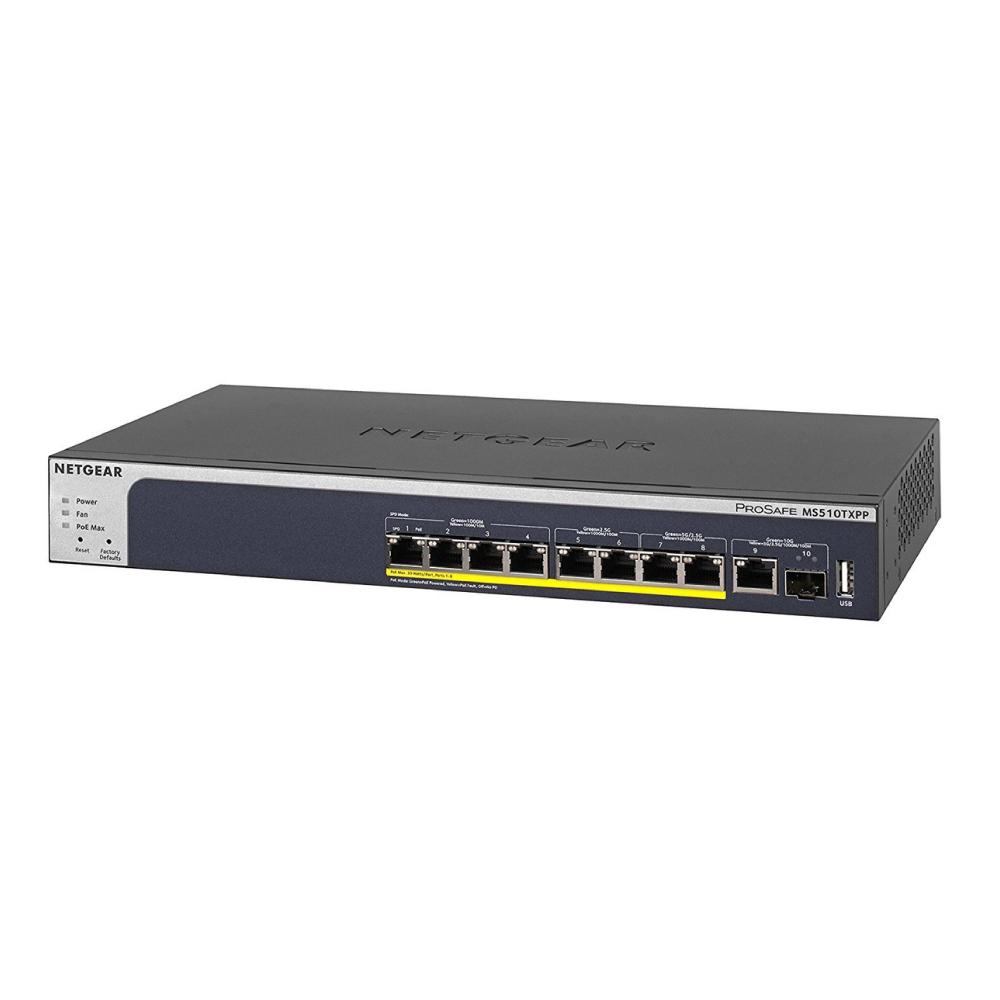

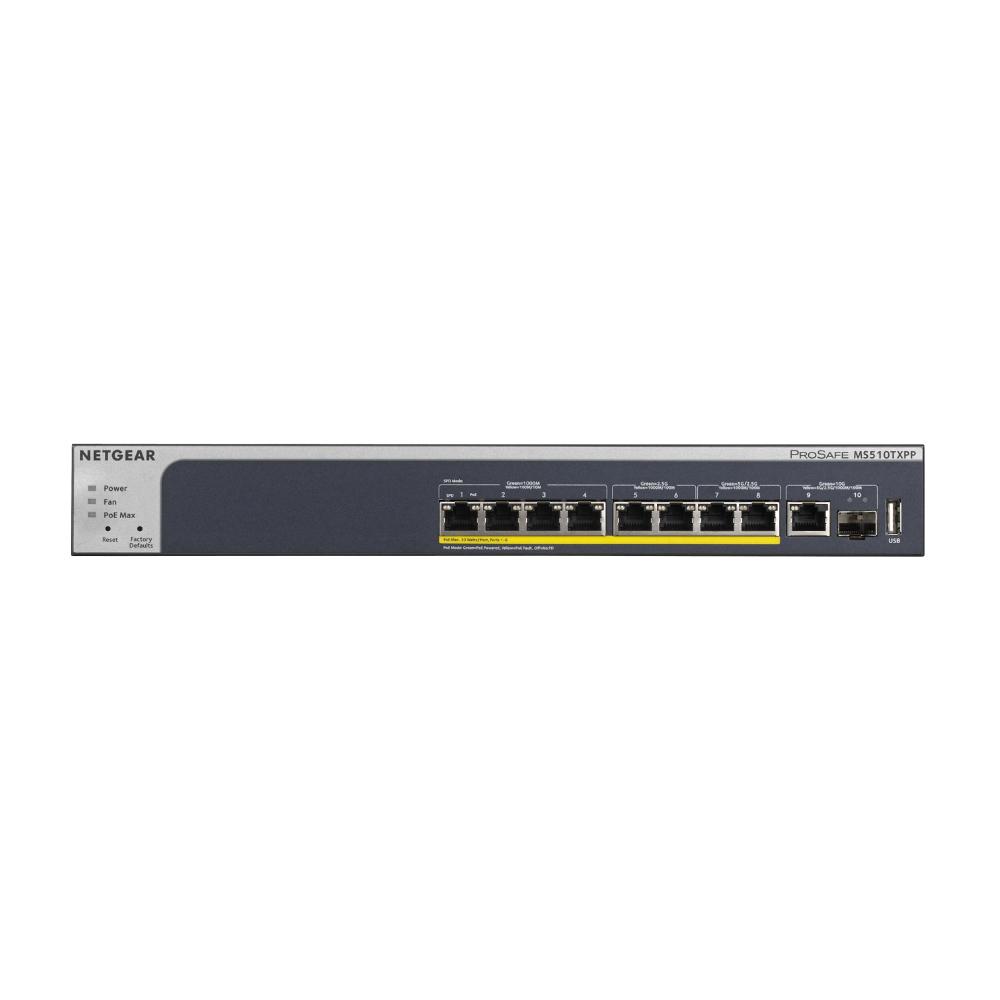

NETGEAR MS510TXPP 10-Port PoE+ Multi-Gigabit/10G Managed Pro Switch

Netgear MS510TXPP 10-Port PoE+ Multi-Gigabit/10G Managed Pro Switch
Netgear MS510TXPP 10-Port PoE+ Multi-Gigabit/10G Managed Pro Switch
Netgear MS510TXPP 10-Port PoE+ Multi-Gigabit/10G Managed Pro Switch
Netgear MS510TXPP 10-Port PoE+ Multi-Gigabit/10G Managed Pro Switch

NETGEAR MS510TXPP 10-Port PoE+ Multi-Gigabit/10G Managed Pro Switch

Regular price $799.00
/
Tax included. Free shipping. Ships in 3-5 business days.

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of speed and power that can support the business’s needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 Access Points now imply the need for faster speeds in the network.

The MS510TXM and MS510TXUP 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed, such as WiFi 6 Access Points (eg. WAX610 from NETGEAR), multi-gig or 10G NAS. NETGEAR Smart Switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.

Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs. To empower the Wireless and PoE applications, NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Features

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)Memory & FLASH log Syslog (server) System password protection

Memory & FLASH log

Syslog (server)

System password protection

Specifications

Product Number

MS510TXPP

2.5-Gigabit ports

2 (100M/1G/2.5G)

5-Gigabit ports

2 (100M/1G/2.5G/5G)

10-Gigabit copper ports

1 (100M/1G/2.5G/5G/10GBASE-T)

10-Gigabit fiber SFP+ ports

1 (1G/10GBASE-X SFP+)

Switching fabric

78 Gbps line rate

Number of PoE ports

8

PoE+ (802.3at)

8

Total PoE Power budget (Watts)

180W

Max MAC entries

16K

Buffer size

3MB

VLAN (Number Supported)

256

VLAN routing

Yes

Dynamic VLAN assignment

Yes

MLD Snooping

Yes

Static route

Yes (32 IPv4 + 32 IPv6)

Host ARP table

Yes (512)

EEE

Yes

DoS Prevention

Yes

Internal/External

 Internal 100-240VAC 50-60Hz

Max consumption (Watts)

234.31W

FAN

1

Acoustic Noise Level @25C (dBA)

28.8

Operating Temperature

0° to 50° C

MTBF at 25° C

376,434 hrs

Physical Specifications

Dimensions (W x D x H) : 440 x 204 x 43 mm (17.3 x 8 x 1.7 in)

Weight : 2.61 kg (5.76 lb)

Warranty

Limited Lifetime Warranty
