The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.
Easily combine new or existing 10-, 100- and 1000Mbps devices within.
Features
Each port delivers up to 2000Mbps of network speed (full duplex)
Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection
Durable quality, space saver, and quietness for peace of mind.
Auto Uplink™ automatically adjusts for straight-through or crossover cables
Plug and play—begins working as soon as it is powered on
Integrates 10-,100- and 1000Mbps devices into your network
Specifications
Product Number
JGS524
Model Description

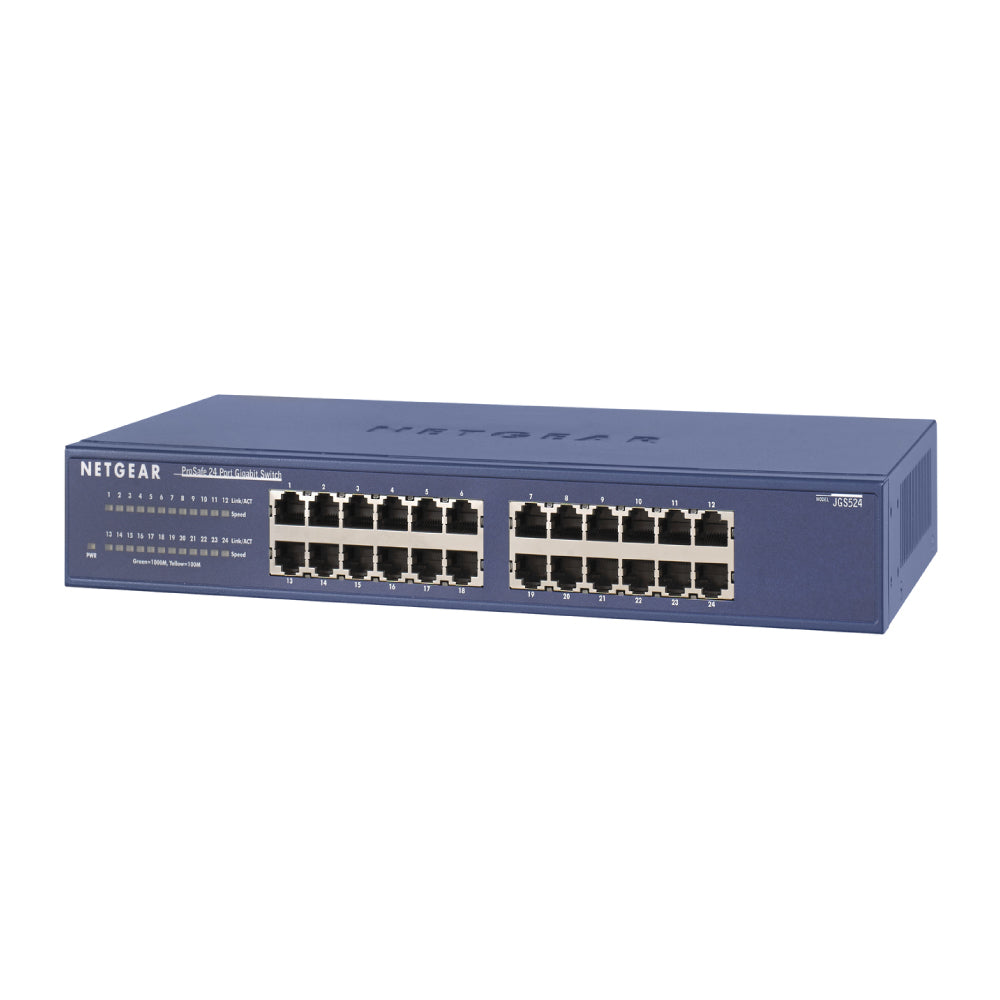

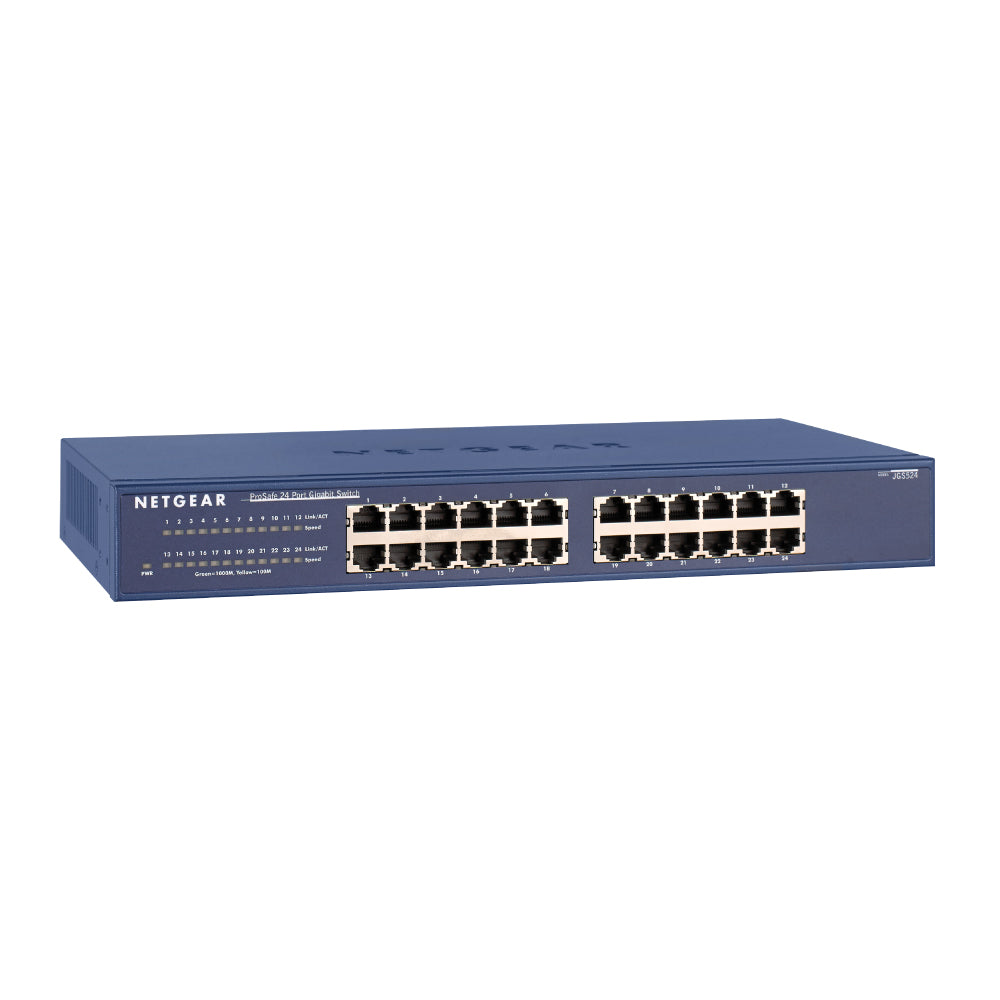

24-Port Gigabit Ethernet Switch
Speed
10/100/1000Mbps Gigibit Ethernet
Number of Ports
24
PoE Ports / Max Power Per Port
N/A
PoE Max Power Supplied
(All Ports)
N/A
Loop Detection
N/A
Short Cable Power Saving
Yes
Energy Efficient Ethernet Support (IEEE 802.3az)
Yes
Jumbo Frame Support
9KB
LEDs
Power, Speed, Link/Activity
Queue WRR Ratio
1:2:4:8
MAC Table Size
8K
Packet Buffer Size
256KB
IEEE 802.1p QoS
Yes
Max Power Consumption (Watts)
17.9W
Operating Temperature
0 to 50° C
MTBF
238,872 hours
FCC Class
A
WARRANTY
Limited Lifetime Hardware Warranty
