Features
PLUG AND PLAY
Simple setup with no software or configuration needed.
POWER-OVER-ETHERNET
16 PoE+ ports with 76W total power budget
FLEXIBLE MOUNTING
Mount on rack, desktop, or wall.
SMALL SIZE, METAL CASE AND SILENT OPERATION
Durable quality, space saver, and quietness for peace of mind.
LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT
NETGEAR has your back to ensure your network is up and running.
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
Can be placed on desk or on mounted rack and will operate quietly with assured durability.
Specifications

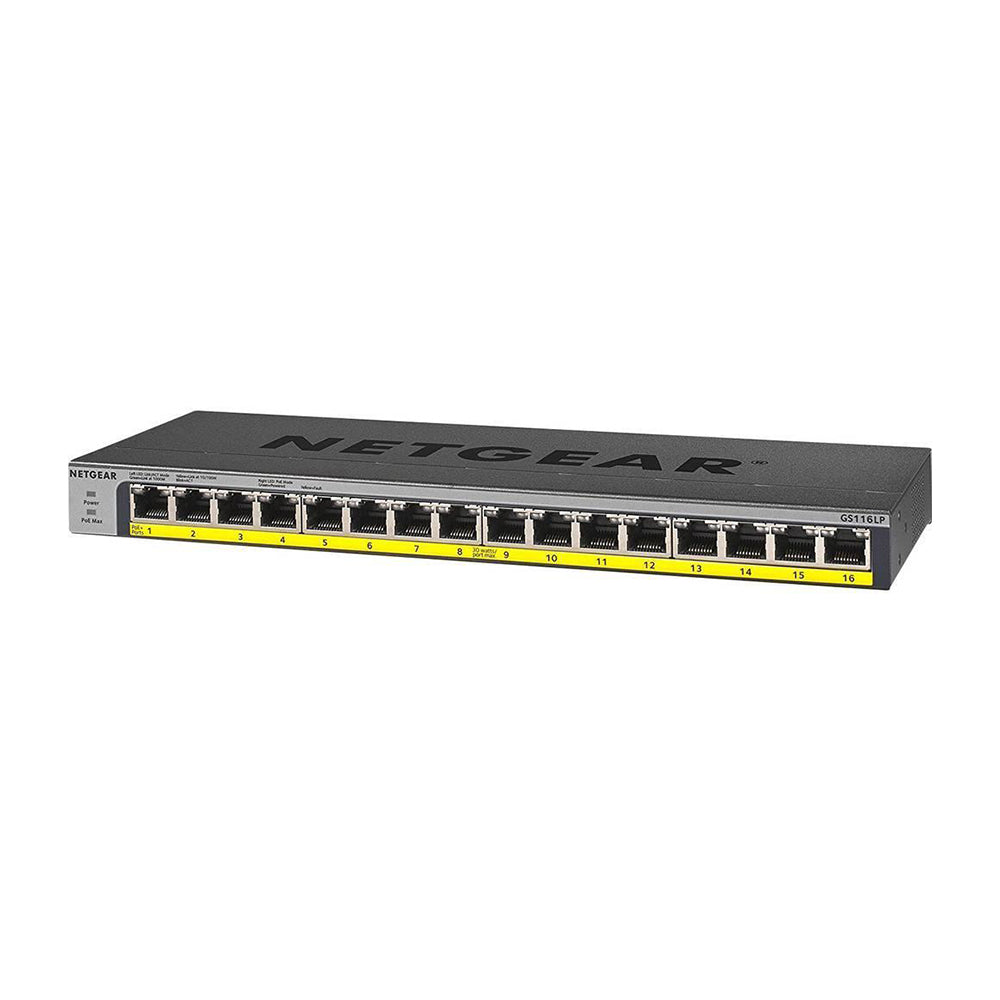

Product Number
GS116LP
Speed
10/100/1000Mbps Gigabit Ethernet
Number of Ports
16
PoE Ports
16 PoE+ ports, up to 30W per port
Total PoE Budget
76W
Loop Detection
n/a
Short Cable Power Saving
Yes
Energy Efficient Ethernet Support (IEEE 802.3az)
Yes
Jumbo Frame Support
Yes
Queue WRR Ration
1:3:5:7:8:10:12:15
MAC Table Size
4K
Packet Buffer Size
1MB
IEEE 802.1p QoS
Yes
Physical Specifications
Dimensions: 286 x 102 x 27 mm
Weight: 0.88 kg
Max Power Consumption
90W
Operating Temperature
0 ~ 40°C
MTBF (Hours)
2,088,514 hours
FCC Class
B
Warranty Information
Limited Lifetime Hardware Warranty
