MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK
SMALL BUSINESS CONTROL
Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimizing WiFi performance for everyone’s needs.
WORK FROM HOME CONTROL
Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.

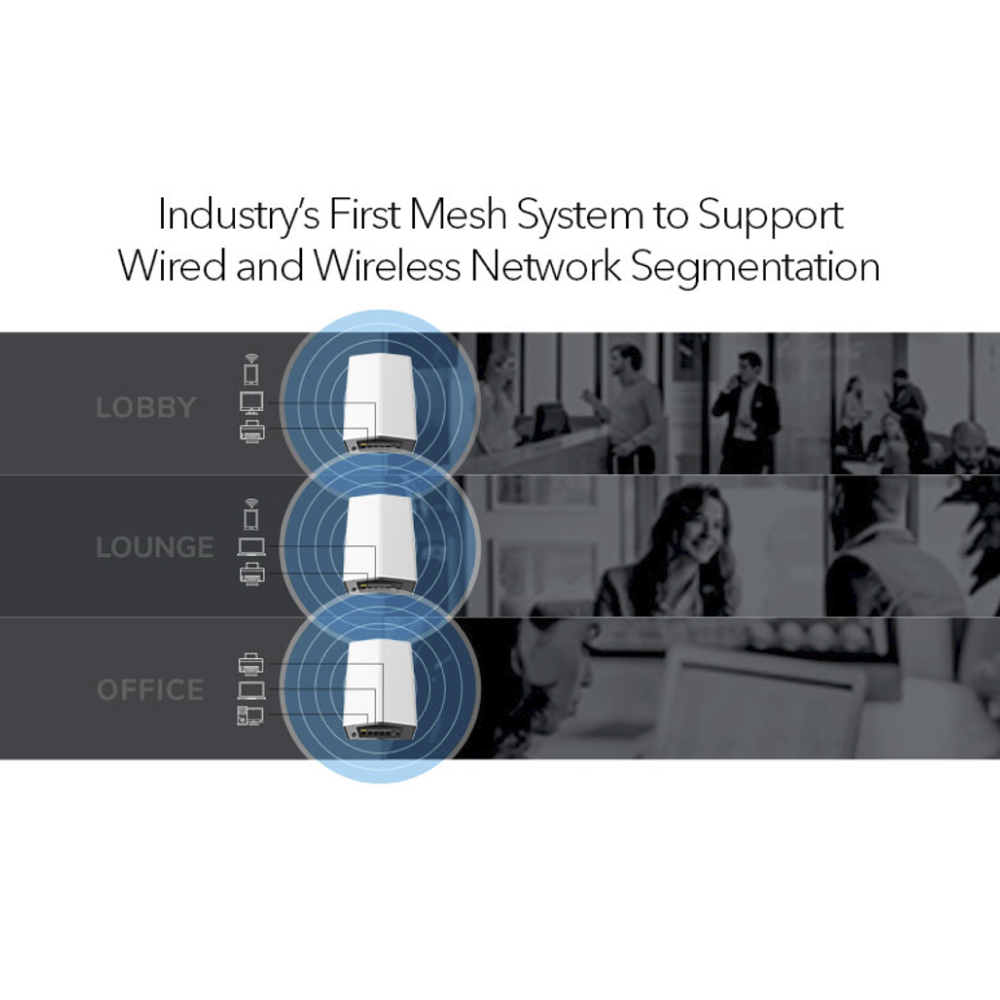

UNRIVALED SECURITY WITH
NETWORK SEGMENTATION
Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.
THE BEST
PERFORMANCE,
PERIOD
Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.

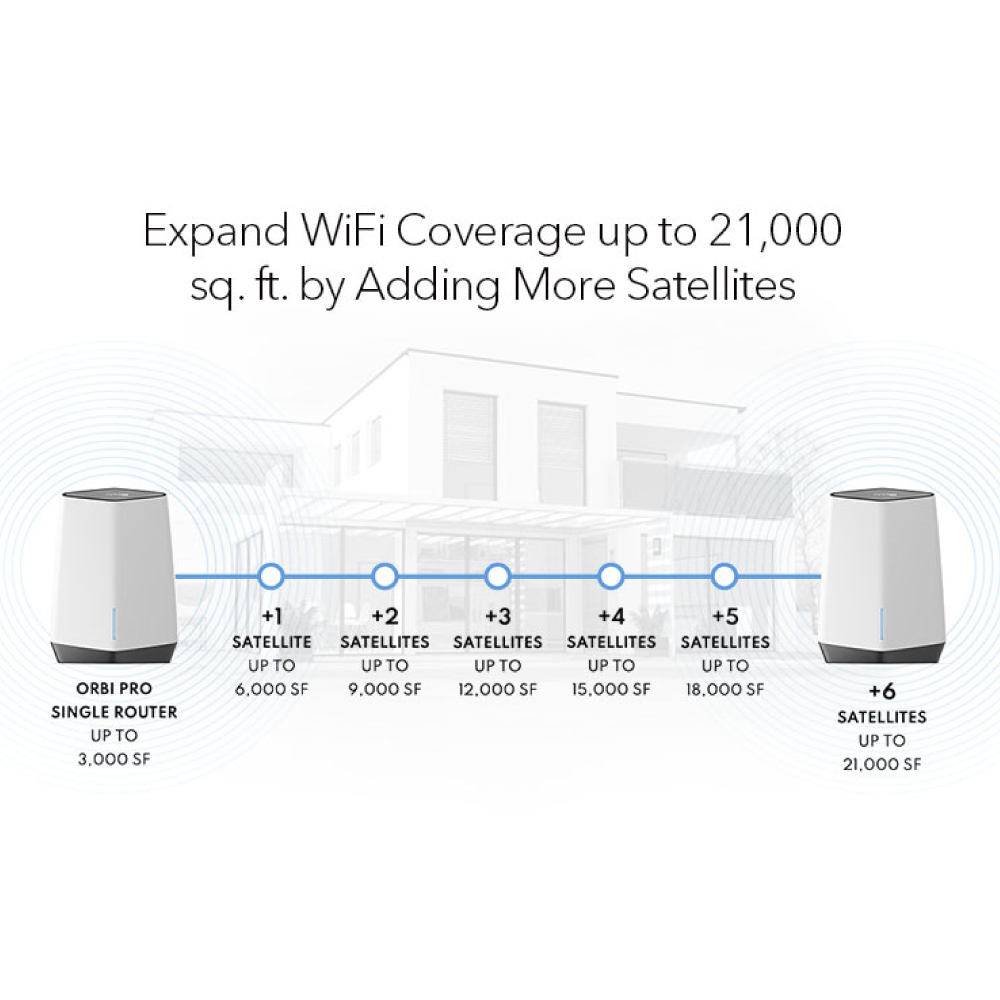

EXPANDABLE AS YOUR NEEDS GROW
Easily add WiFi coverage with additional wireless satellites — each expands coverage by 3,000 sq. ft. (sold separately).
NETGEAR INSIGHT MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere.

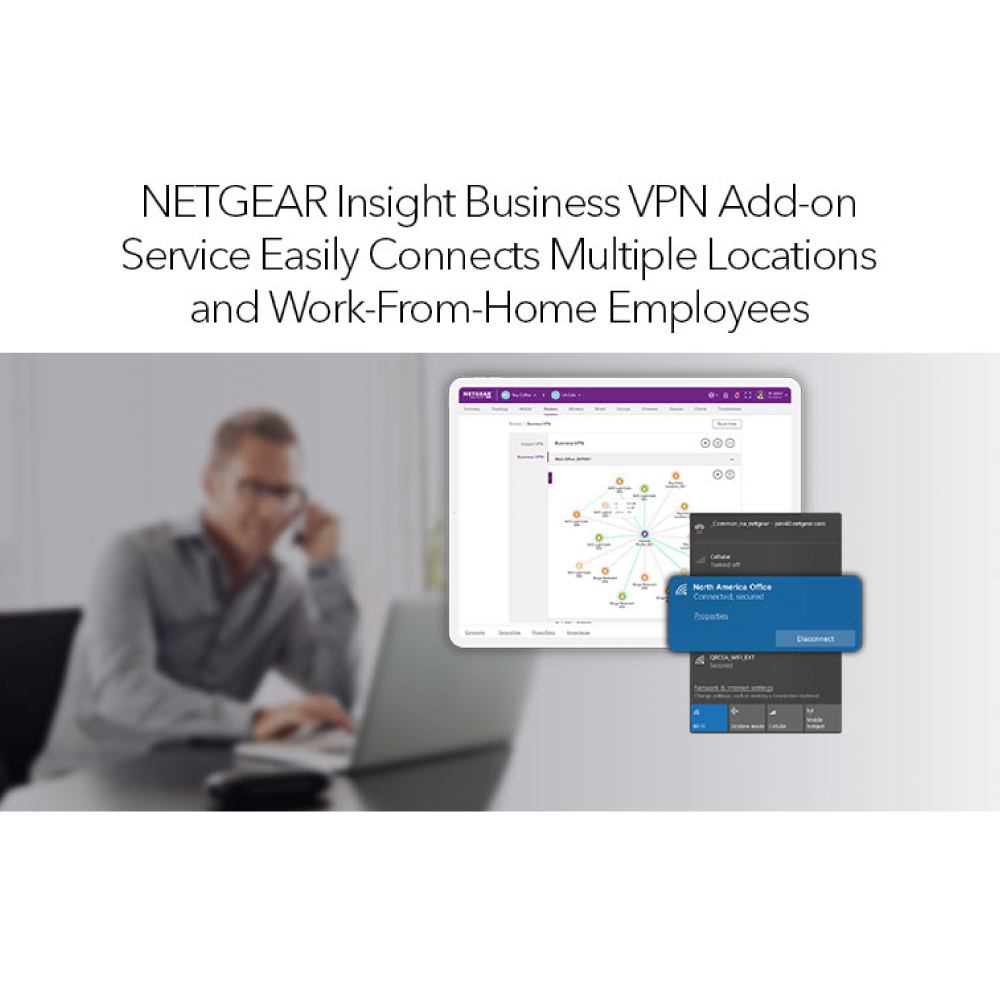

One-Step VPN Connectivity for your Business
Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*

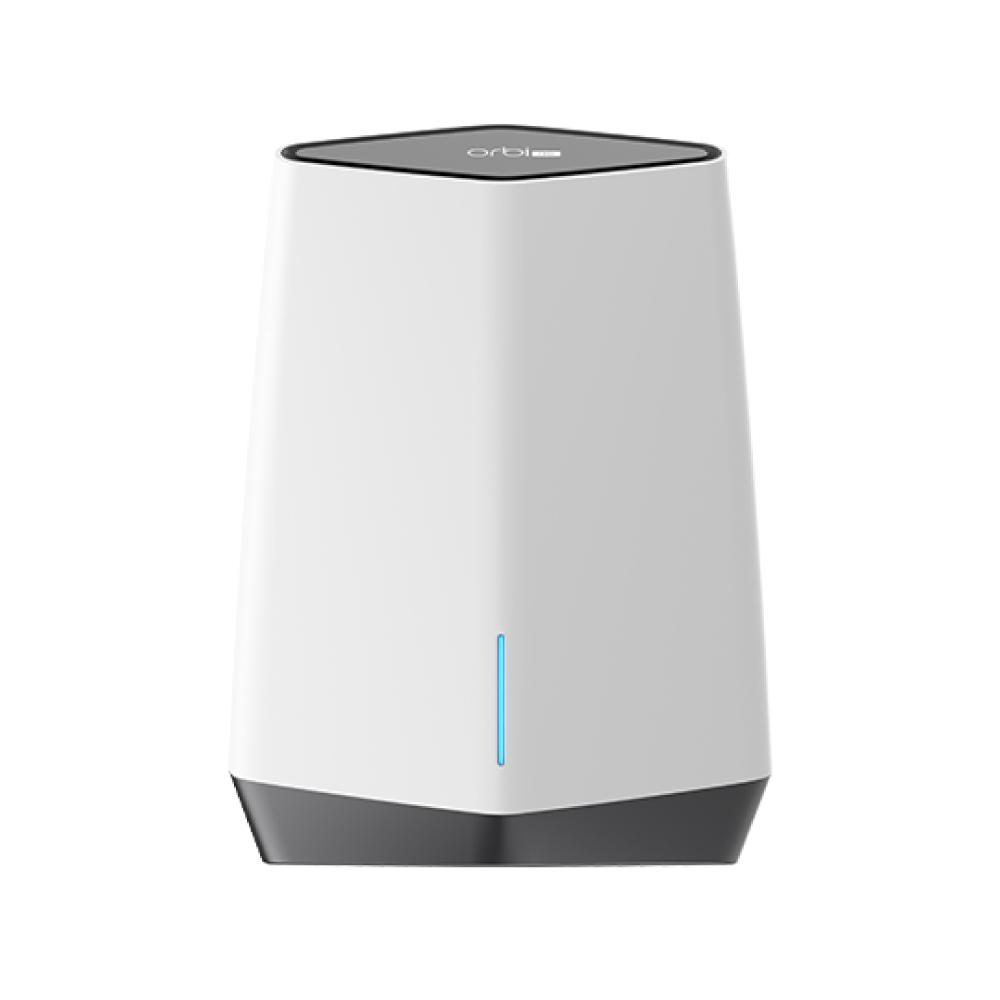

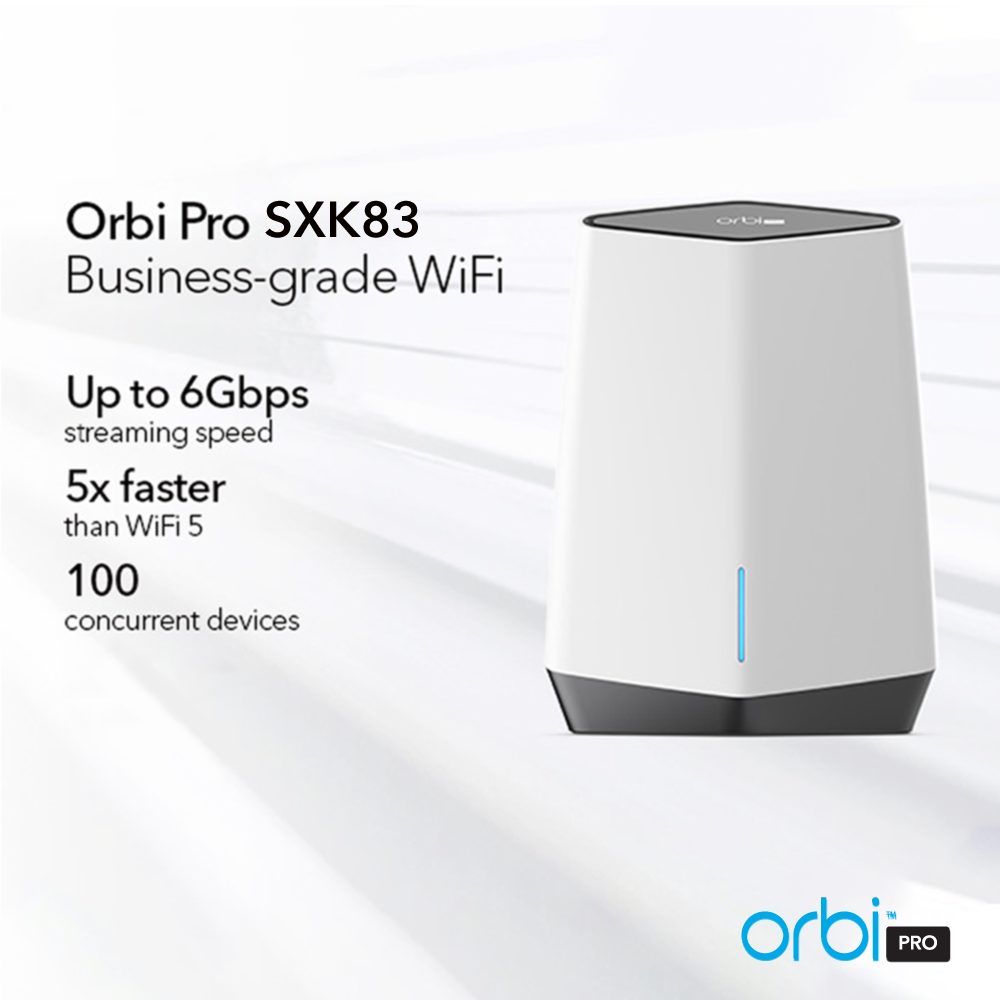

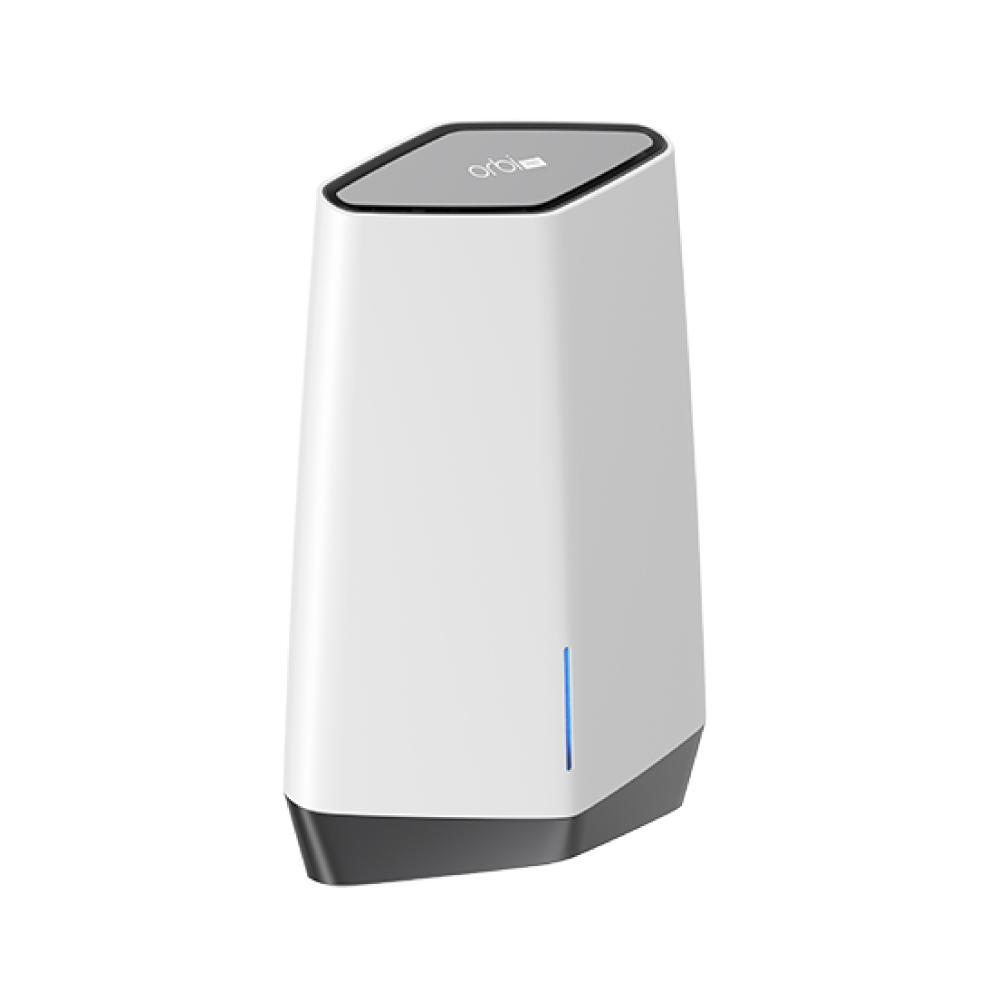

Orbi Pro WiFi 6 Router (SXR80)
Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb
Orbi Pro WiFi 6 Satellite (SXS80)
Dimensions6.8 x 3.3 x 9.7 in, Weight 2.06lb each
WiFI Technology
(2,400 + 2,400 + 1,200) Mbps†, Simultaneous Tri-band WiFi
Radio 1
IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
Radio 2
IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
Radio 3
IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
Antennas
Eight (8) high-performance antennas with high-power amplifiers
MU-MIMO
OFDMA and bi-directional MU-MIMO WiFi 6 throughput. MU-MIMO capable for simultaneous data streaming on multiple devices
TWT
TWT (Target Wait Time) for longer smartphone battery life
Beamforming
Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
Link Aggregation Grouping

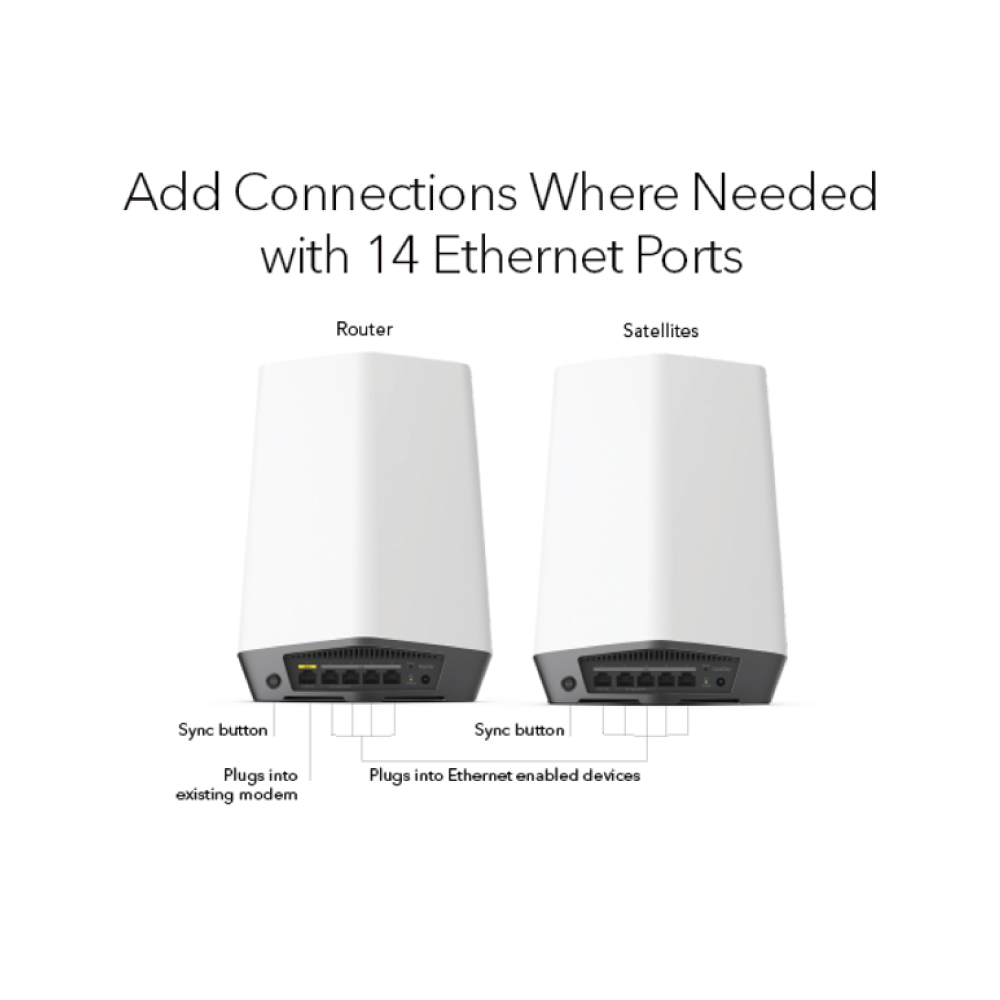

Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG. Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
Ports – Orbi Pro WiFI 6 Router
One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port. Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional. Two (2) Gigabit Ethernet LAN ports
Security

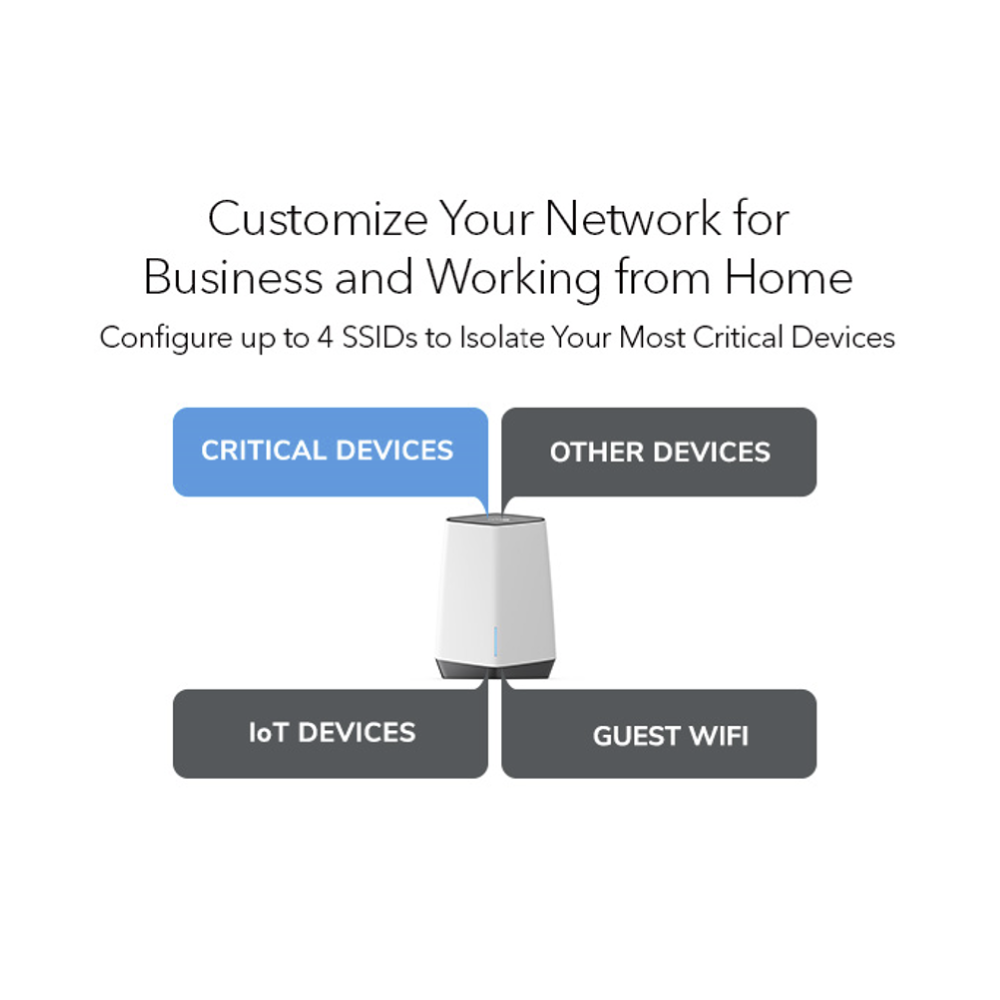

Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices). Flexible VLAN configuration on all four (4) SSID WiFi networks. Client isolation by default on Guest SSID and configurable on other SSIDs. WPA/WPA2/WPA3 support.
Insight
Insight App - Secured cloud and local management
Local Admin
Local Admin UI available for extensive feature setting and maintenance
Warranty
3-Years Warranty
Package Content
One (1) Orbi Pro WiFi 6 Router (SXR80)
Two (2) Orbi Pro WiFi 6 Satellite (SXS80)
Three (3) wall mounts with screws
One (1) 2m Ethernet cable
Three (3) 12V/3.5A power adapters
Installation guide
